Colour range this profile is available in 45 Renolit foil grain colours on white or brown core profile
Double triple glaze available
The possibility to execute in the so-called thin welding technology (V-Perfect), that allows to connect the profiles perfectly
Excellent price-performance ratio.
Upto 3m width in 2 doors.
This IG5 system has a 5-chamber system using profile class A Virgin grade UPVC with a construction depth of 70 mm and full frame reinforcement as standard.
Glazing:
Maximum glazing thickness up to 36 mm. with double glazing efficiency at 1.0Kw/m2 & triple available with 0.7Kw/m2 please indicate when choosing your item, Optional use of special glasses such as laminated safety glass or Toughened thermofloat as well as solar protection glass or sound reducing glass available upon request.
Fittings:
MACO MULTI MATIC KS Locking systems with Multipoint and dual opening positions all fittings-as standard for the necessary security, the MACO security fittings on the parallel Tilt and Slide doors (PSK) are equipped with a steel mushroom pin locking points In addition, the frame is reinforced by a box section steel profile, which means that the pins can be mounted directly in the steel. The door leaf is protected by a C-profile. Two independently working guide rails enable easy operation. For even more convenience, an automatic gearbox for easy operation of the PSK door
Threshold:
Reinforced multi chambered Upvc threshold with thermal break for minimum heat loss
Features and benefits

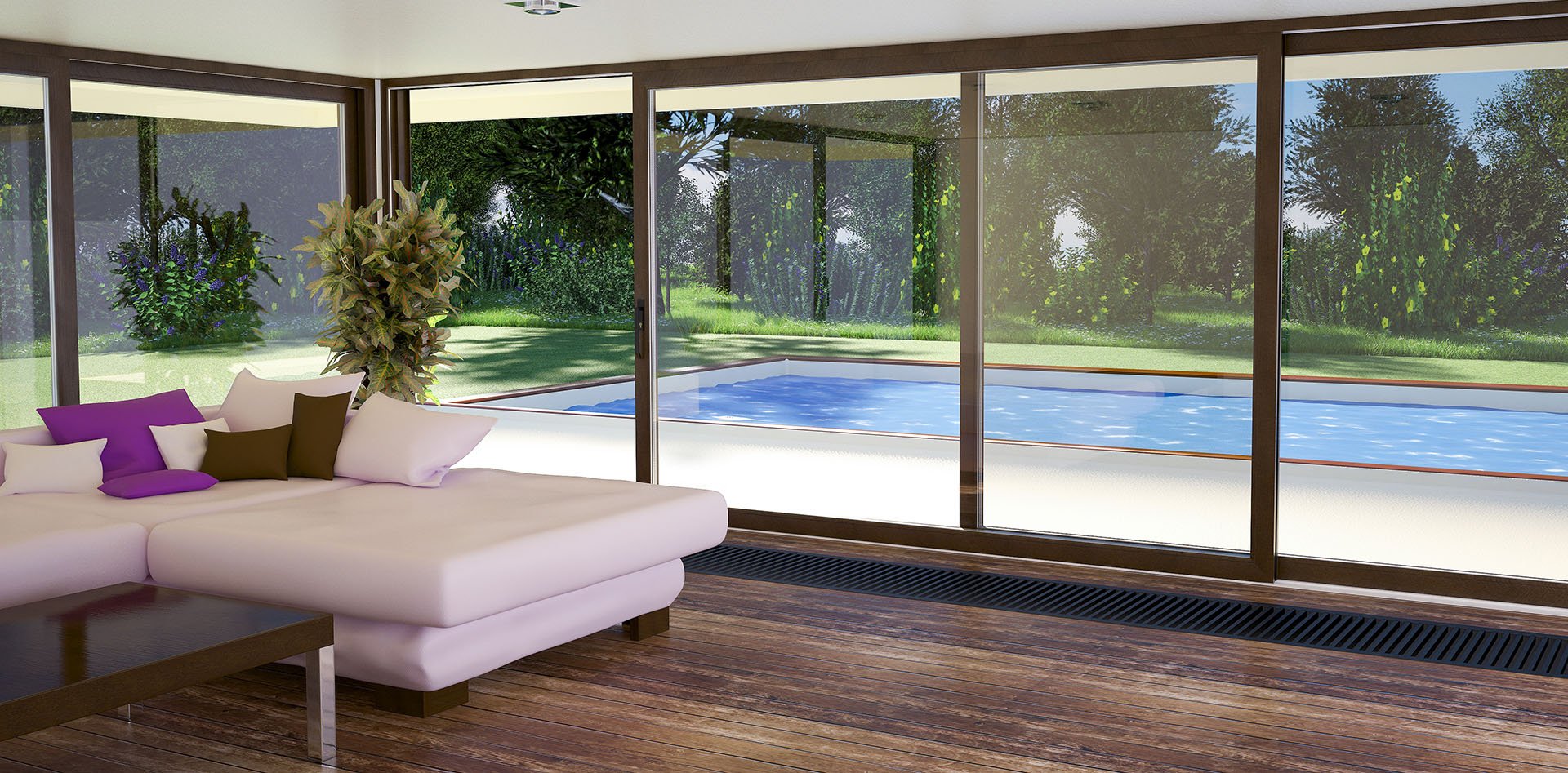

Our IG5 HS lift & slide door - Innovative in design with stunning performance
IGLO 5 parallel tilt and slide door - price and performance go hand in hand .
The high-quality UPVC PSK – Tilt slide door of the IG 5 series is secure and highly energy efficient energy. The first-class 5-chamber profile has excellent thermal insulation parameters at comparatively low cost. The UPVC profile is made always from Virgin grade A class UPVC as standard
Insulating with EPDM seals ensure super air and water tightness s against driving rain and are available in black, grey and graphite. A large selection of RENOLIT colour foils are available, Bright colours or a natural wood look with a deceptively realistic grain are no problem. In addition, the high-performance film protects the profile underneath from UV radiation and makes it weatherproof and easy to care for.
