Possibility of two options for central meeting frame, 110 mm standard section and minimalist solution of only 50mm
Lift & slide operation system
With practical flush threshold
Optional: intelligent control system.
Features
Possibility of large sash dimensions makes this system ideal for enclosing large spaces, at the same time that it provides maximum light efficiency, It is a robust system in appearance, but light at the same time to operate providing an ultra smooth opening action and perfect sash sliding over a stainless steel rail.
Sliding options
2 doors twin track sliding 2-3-4-6 Panes
3 track
Two track and Monorail (1 pane + Fix).
Profile:
Aluminium multi-chamber profile with thermal separation. Installation depth of the frame 160 mm and the door leaf 140 mm.
Glazing:
Maximum glazing thickness up to 50 mm. (depending on the wind load)with double or triple with optional use of special glasses such as laminated safety glass or ESG as well as solar protection glass or sound reducing glass available upon request.(max panel 3,3mx 3.3m)
Fittings:
Lift & slide hardware system with a sash weight of up to 400 kg. Safety locking bolt features and locking device for the night vent.
Performance.
Energy efficient with U values 0.9W/m2K*
Noise reduction up to 43 dB
Class 9A Water tightness
Class C5 Wind resistance
Class 4 Air Permeability
Weight max 400 Kg PL
Threshold:
Aluminium threshold with thermal break for minimum heat loss
Features and benefits of our Aluminium Plus Glide 46 lift & slide door - Innovative in design with stunning performance

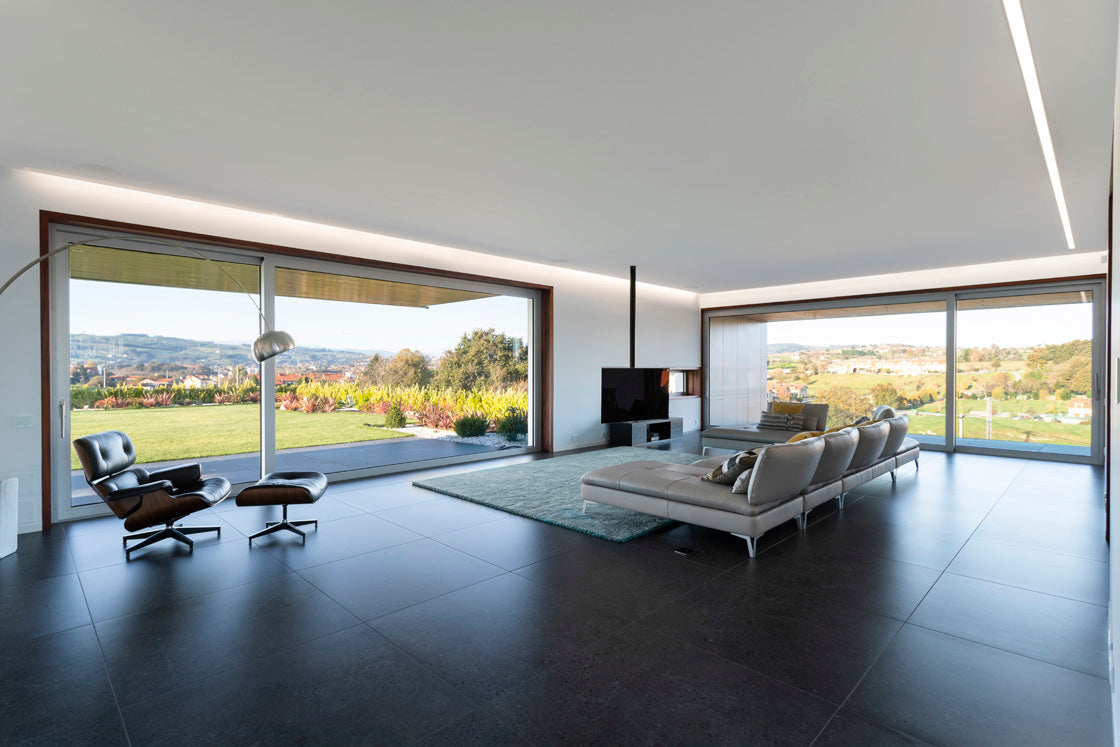

Large panoramic windows want to be used optimally! The optimal solution for large openings is our Plus Glide 46 lift and slide door aluminium patio door sliding system, The Plus Glide 46 profile is suitable for large structures with a width of up to 6.6 m in a twin set of doors 10m in triple configuration and up to 14m in a four configuration and remains very stable and comparatively light. Depending on the configuration, two to three running track within the frame ensure easy use of the elements and maximum functionality even with a doors leaf weighing up to 400 kg.
We can offer a wide range of RAL colours and wood grain finishes and even textured options are available to meet all design requirement. The space-saving opening mechanism of the Plus Glide 46 door also enables completely free interior design, as no opening radius of the patio door must be considered. Convenient operation is provided by suitable fittings with manual or automatic locking available. all doors are PAS 24 compliant for maximum security as standard.
