Optional thermal break for more thermal insulation
Colour matching handles
many opening configurations max 7 left and 7 right with bottom rolling.
opening inside or outside
Document Q compliant inc PAS24 and BS6375 PT1 weather testing.
Profile:
This profile has a three-chamber structure with the structural depth sections 73 mm (frames) and 73mm (sash).
Glazing:
The sealed unit options are varied up to a maximum thickness 45mm. Double glazed with Uw from 1,1 (W/m²K) with the possibility to apply glass with enhanced sound insulation, tempered, safety, and laminates, obscured or solar protective options.
Performance and features.
Max weight 120Kg per panel
Max height 3m
Max panel width 1200mm
Multiple threshold options
adjustable jamb options
30mm thermal polyamide thermal break
Slim sight lines
Dual colour and special finishes available
intermediate doors have concealed shootbolt locking with single handle.
Option for external access any configuration.
Threshold:
Aluminium threshold with thermal break multiple options available.
Plus fold

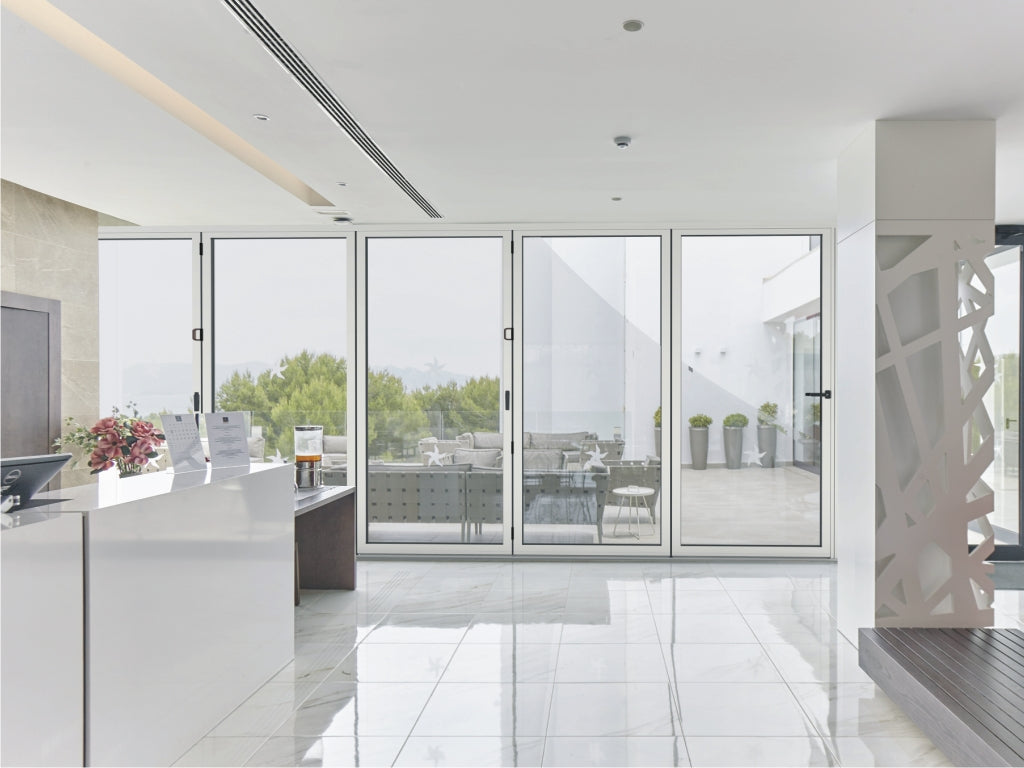

Whether in a conservatory, terraces or balconies - Our aluminium Bi folding door system Plus Fold is the ideal solution for large open glazed areas. The aluminium profile is light, but still extremely stable and therefore ideally suited for wide glazing. The running rails are attached either to the upper frame (top-hung) or to the threshold (bottom-hung). The folding sliding door simply slides along them - after the door leaf has been operated - and opens inwards.
available in any ral colour and in various textures and finishes.
